Belvedere Grand R

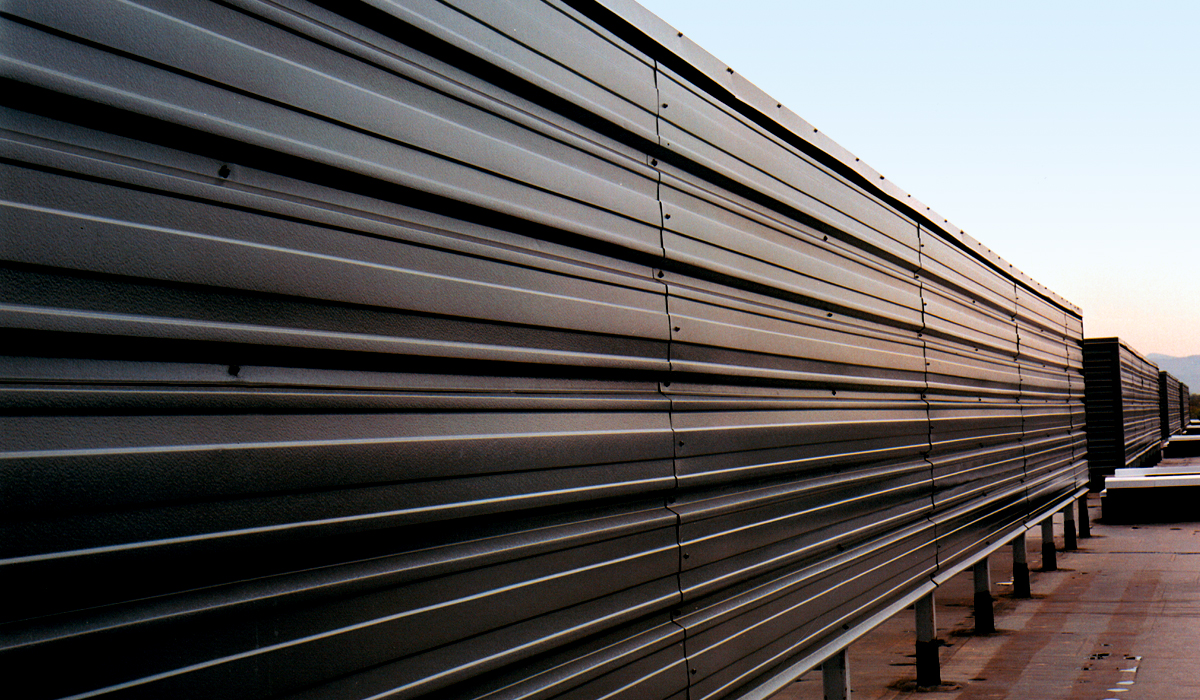

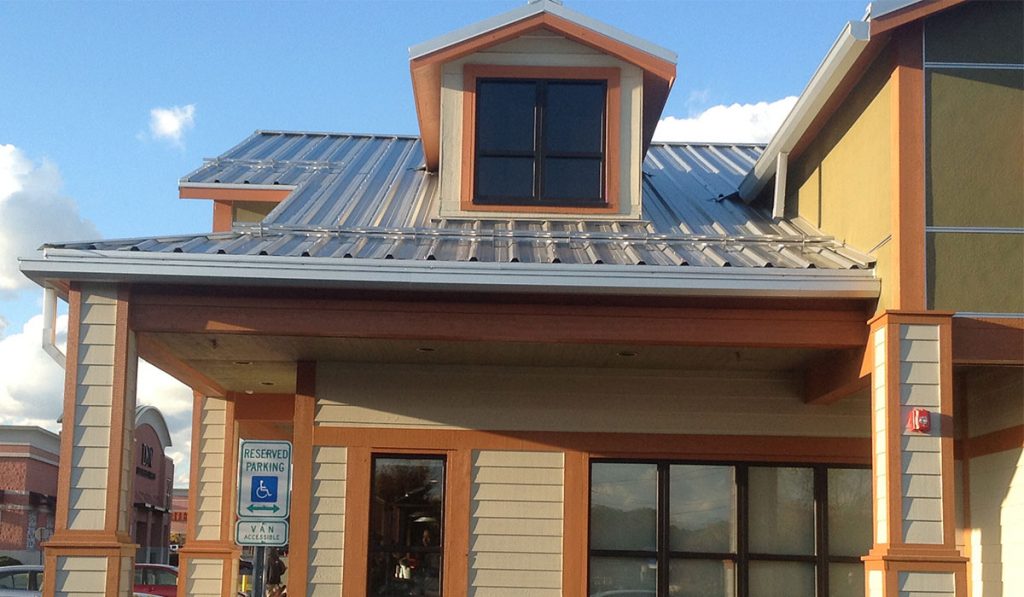

Belvedere Grand R panels are structural in nature and can be installed either on solid substrate or open framing. This panel can be installed vertically or horizontally with exposed fasteners.
![](https://www.atas.com/wp-content/uploads/2020/03/Belv-Grand-R-Metric.jpg)
BWG390
.032, .040, .050 aluminum
24, 22*, 20* ga. metallic coated steel
24, 22*, 20* ga. 55% Al-Zn alloy coated steel with acrylic coating
39”
6’-0”
Transportation limitations and/or product and project design considerations
1½”
Smooth
Stucco Embossed
70% PVDF, Anodized
A complete line of trims available in matching colors, gauge, and finish or as specified
1½” : 12
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
PDF File Format
- Belvedere Grand R - All Details
- Belvedere Grand R - Eave Detail
- Belvedere Grand R - Gable Detail
- Belvedere Grand R - Headwall Detail
- Belvedere Grand R - Hip Detail
- Belvedere Grand R - Panel Profile Detail
- Belvedere Grand R - Ridge Detail
- Belvedere Grand R - Shed Ridge Detail
- Belvedere Grand R - Sidewall Detail
- Belvedere Grand R - Valley Detail
- Belvedere Grand R - Vented Closure Install Detail
- Belvedere Grand R - Vented Headwall Detail
- Belvedere Grand R - Vented Ridge Detail
- Belvedere Grand R - Vented Shed Ridge Detail
DWG File Format
- Belvedere Grand R - Eave Detail
- Belvedere Grand R - Gable Detail
- Belvedere Grand R - Headwall Detail
- Belvedere Grand R - Hip Detail
- Belvedere Grand R - Panel Profile Detail
- Belvedere Grand R - Ridge Detail
- Belvedere Grand R - Shed Ridge Detail
- Belvedere Grand R - Sidewall Detail
- Belvedere Grand R - Valley Detail
- Belvedere Grand R - Vented Closure Install Detail
- Belvedere Grand R - Vented Headwall Detail
- Belvedere Grand R - Vented Ridge Detail
- Belvedere Grand R - Vented Shed Ridge Detail
