Colonial Seam

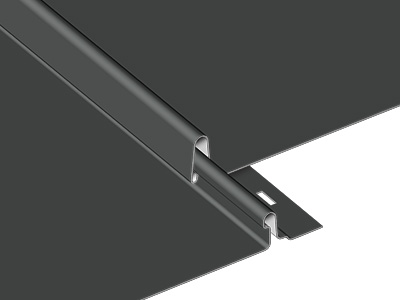

The Colonial Seam® panel is a clipless, one-piece, positive-locking, standing seam panel that provides a timeless roof appearance. Installation is accomplished by hooking the panel into the previous panel and fastening with mechanical fasteners through pre-punched slots to allow for expansion and contraction. The fasteners are covered by the adjacent panel. The positive locking action makes it virtually impossible for the panels to slide apart.
HCS120
HCS160
HCH110
HCH150
.032 aluminum
24 ga. metallic coated steel

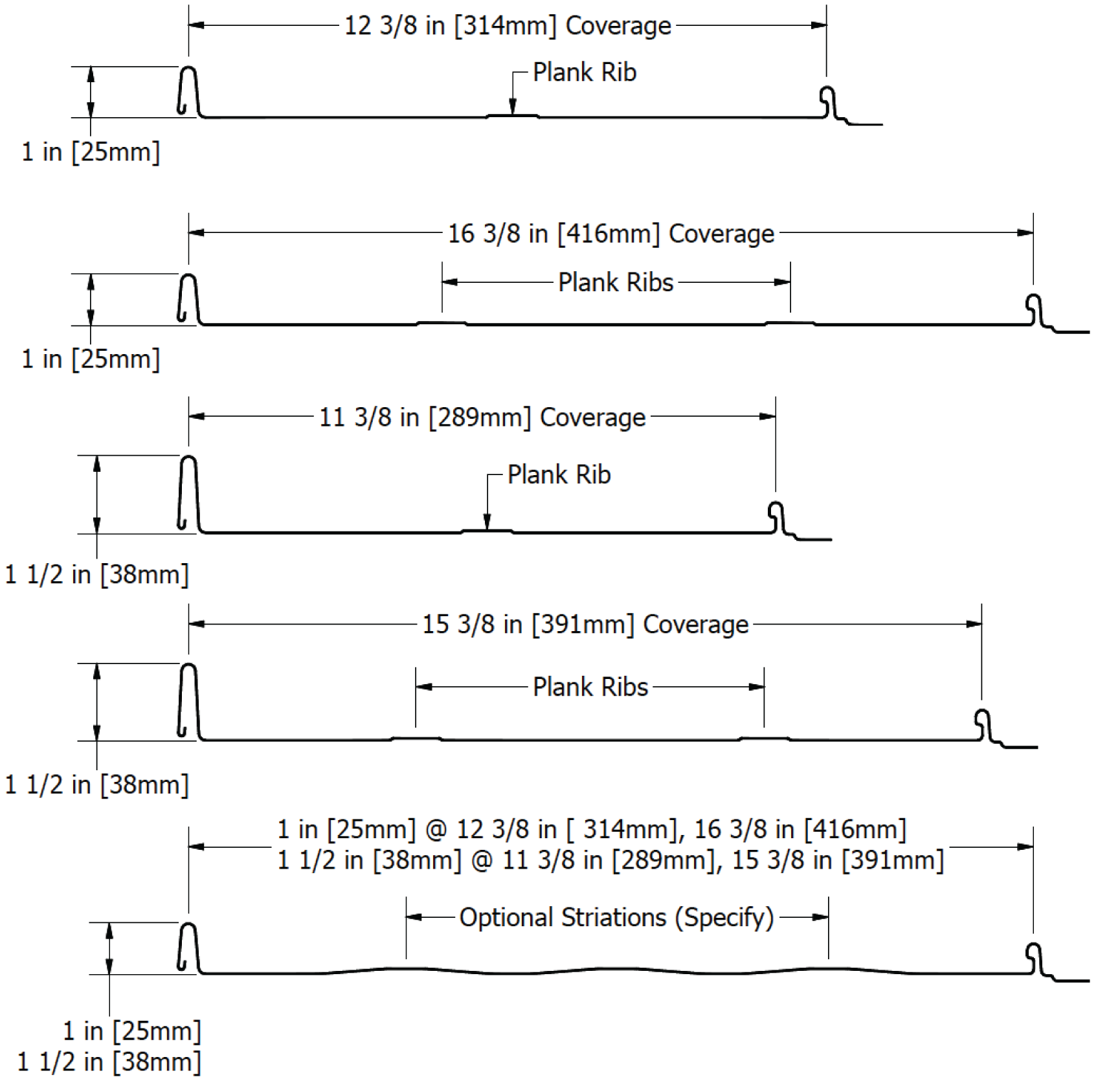

12⅜”
16⅜”
11⅜”
15⅜”
(plank ribs or striations optional)
2′-0″
20′-0″ (aluminum)
25′-0″ (steel)
1″
1½”
Factory panel pre-notching available.
Contact ATAS for specifics.
Smooth
Stucco Embossed
70% PVDF
Choice of over 40 stock colors
Custom colors and finishes available*
A complete line of trims available in matching colors, gauge, and finish or as specified.
3:12
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
