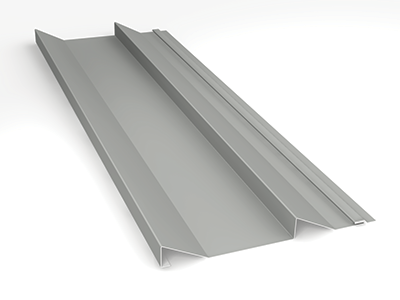

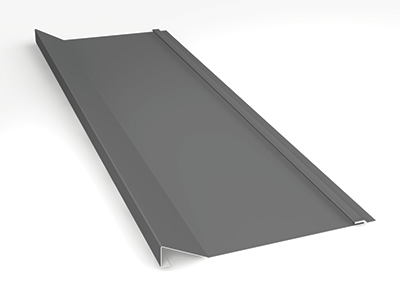

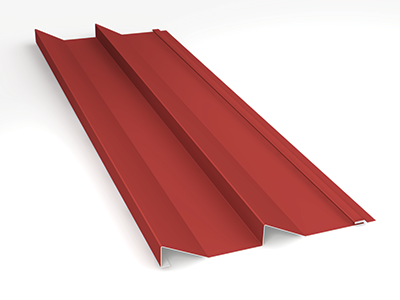

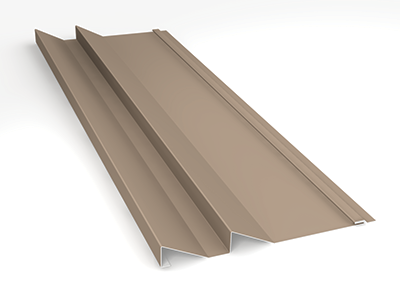

MultiFin Series

MultiFin features a distinctive fin-style profile available in multiple variations, designed to pair seamlessly with the MetaFlex panel through a shared interlock. As a structural rainscreen wall panel system, MultiFin encourages design flexibility and elevated aesthetics across a wide range of building façades. Mix and match colors, finishes, and fin spacings to bring virtually any design vision to life with MultiFin. Panels are offered in both aluminum and steel, with a range of thicknesses to meet project needs. MultiFin is well suited for commercial, educational, and healthcare facilities, as well as multi-family residential and mixed-use developments.

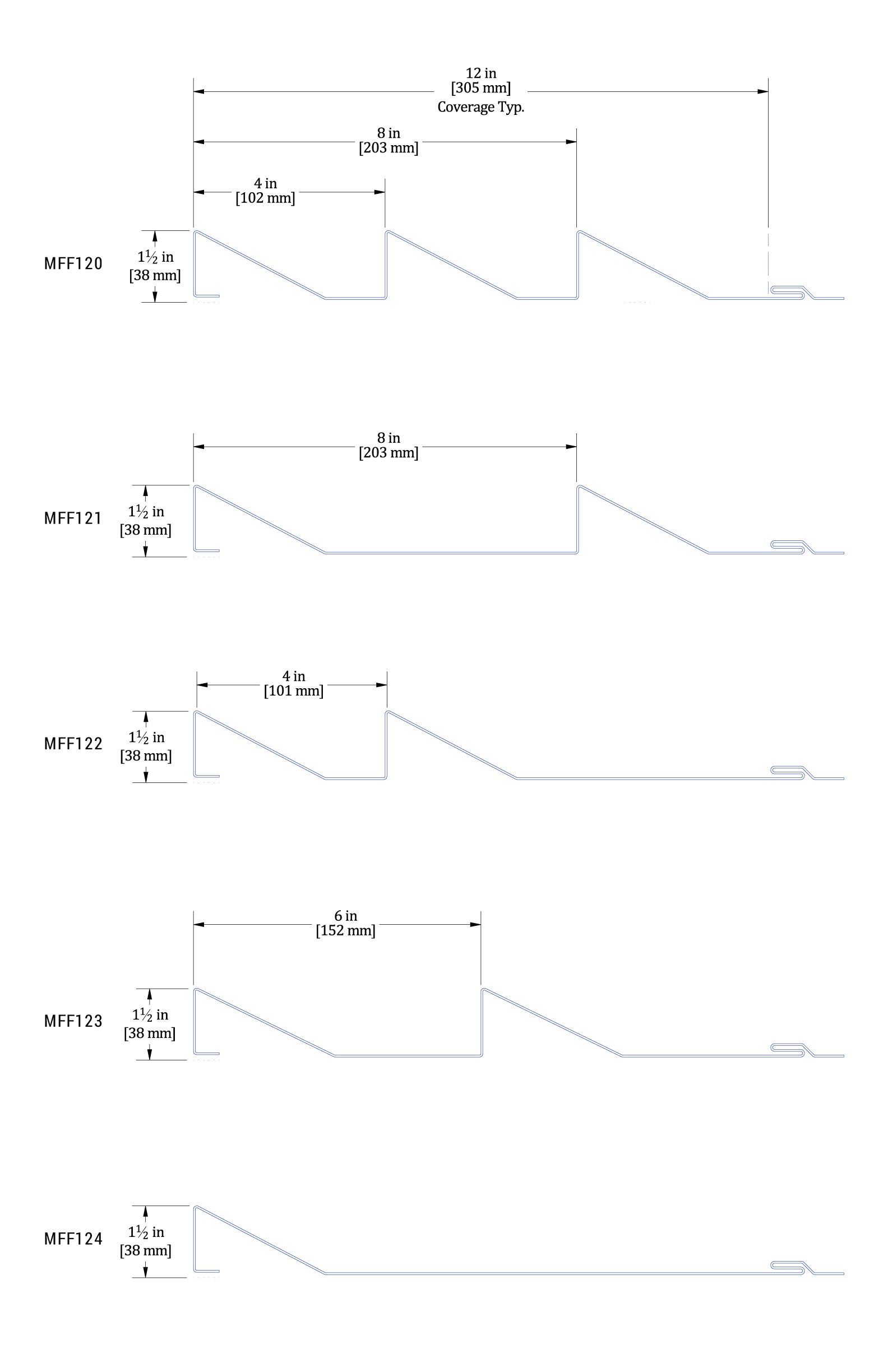

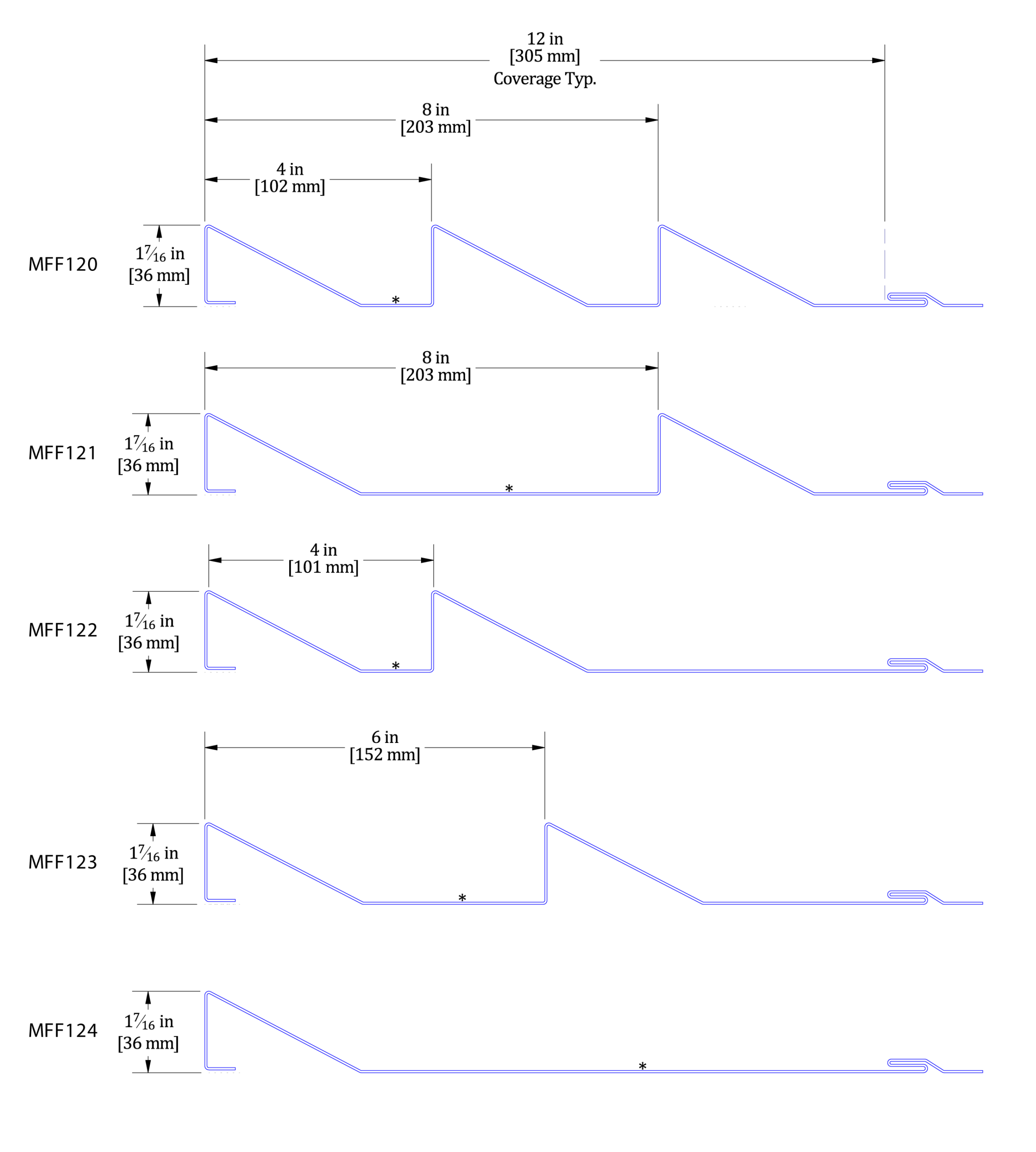

Line Drawing
Product Info
CAD Details

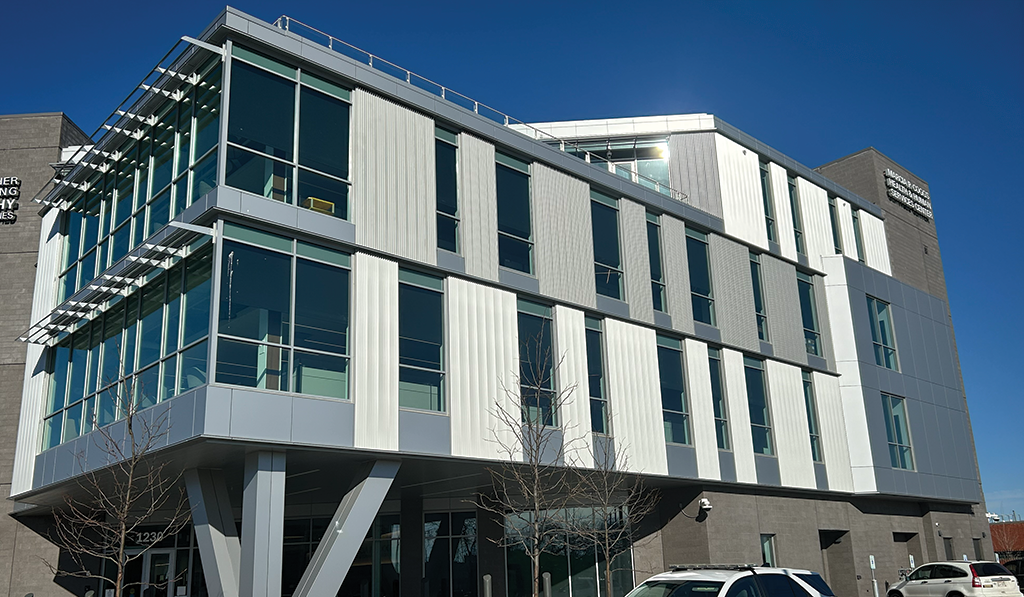

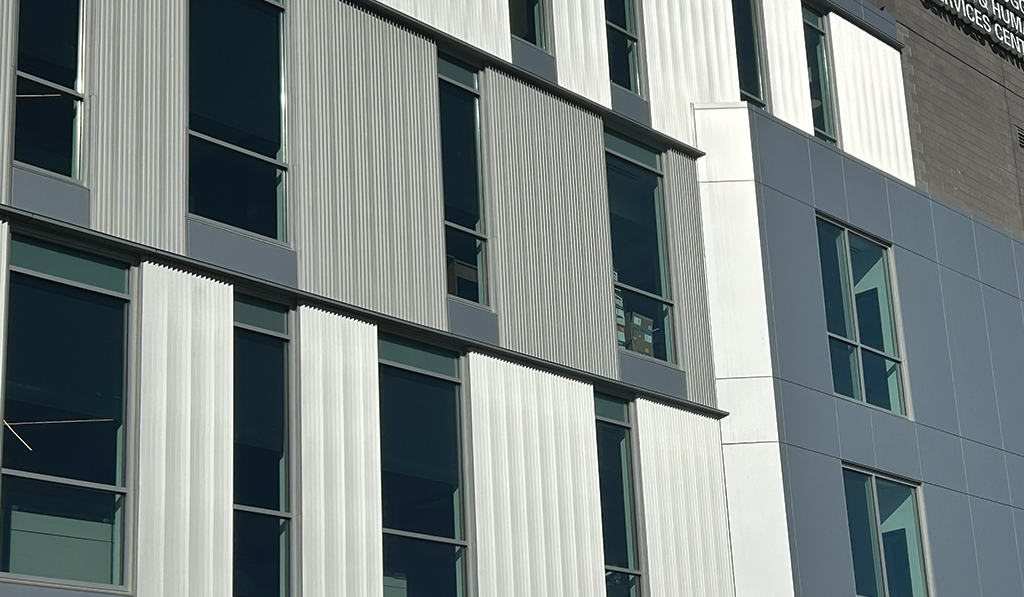

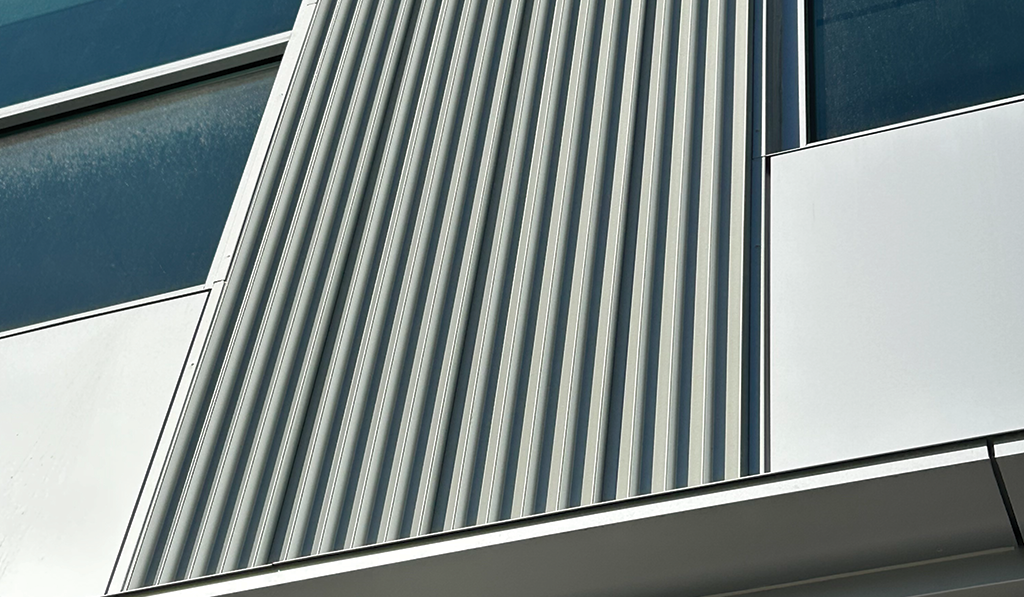

Gallery
Documents

Line Drawing

Product Info

SKU:

MFF

Material:

.032, & .040 aluminum

24, 22* & 20* ga. metallic coated steel

Panel Coverage:

12″

Minimum Panel Length:

3′-0″

Maximum Panel Length:

26′-4″

Panel Depth:

1 7/16”

Texture:

Smooth

Stucco Embossed

Finish:

70% PVDF

Colors:

Choice of over 40 stock colors
Custom colors and finishes available*

Anodized:

LA Extra Dark Bronze Anodized (.040)
BlackMatt Anodized (.040)
Dark Bronze Anodized (.032 & .040)
Clear Satin Anodized (.032, & .040)

Accessories:

A complete line of trims available in matching colors, gauge, and finish or as specified

CAD Details

Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
